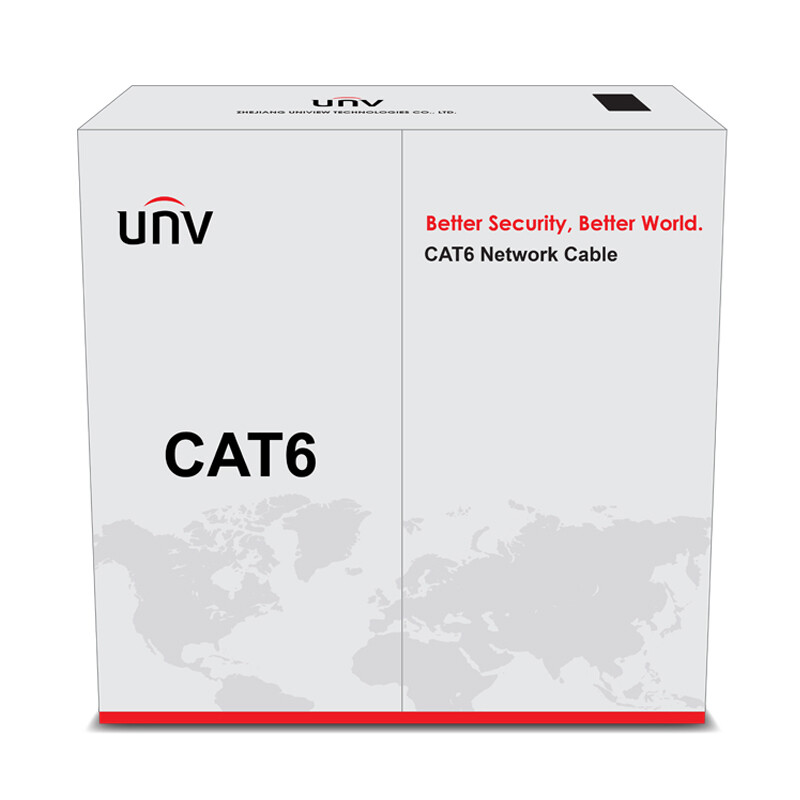

Uniview Cat 6 Cable

SMT00037
N69 000.00
In stock
1
Product Details
Brand: Uniview

Uniview Cat 6 Cables are the most reliable pure copper indoor CAT6 cables available right now. They are affordable, durable and of high quality. Length of cable is 305m. Also available at Sterling Magna Technologies office at Ajah, off Lekki Epe Expressway, Lagos state, Nigeria. This product can be shipped to any location in Lagos, Abuja, Port Harcourt, Kano and across Nigeria.


Data Sheet
Product model CAB-LC3100
Product specification HSYV-6 4×2×0.57
Test Standard YD/T1019-2013
Conductor Material OFC(Oxygen free copper)
AWG 23
Nom.O.D.(mm) 0.57±0.005 mm
DC resistance ≤95 Ω/km
Insulation Material HDPE
Thickness 0.2±0.02 mm
Diameter 1.02±0.05 mm
Color Blue/White- Blue Green/White-Green
Electrical Characteristics:
Frequency Characteristic impedance RL ATT NEXT
MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m
1 100±15 20.0 2.0 74.3
4 100±15 23.0 3.8 65.3
10 100±15 25.0 6.0 59.3
16 100±15 25.0 7.6 56.2
20 100±15 25.0 8.5 54.8
31.25 100±15 23.6 10.7 51.9
62.5 100±15 21.5 15.4 47.4
100 100±15 20.1 19.8 44.3
155 100±15 18.9 24.7 41.7
200 100±15 18.0 29.0
